ITP Series
Iwata original tapping screws for Resins
ITP Series
Iwata original tapping screws for Resins
- Feature
- A series of tapping screws for resins that are with low tightening torque and high breaking torque
- What is ITP？
- IWATA BOLT Tapping screw for Plastic
- Industry
- Transportation, consumer electronics, precision equipment
- Specific Application
- Tap less application on plastic molded parts, where it wasn’t possible due to tightening issues with standard tapping screws
- Size
- 2mm〜5mm

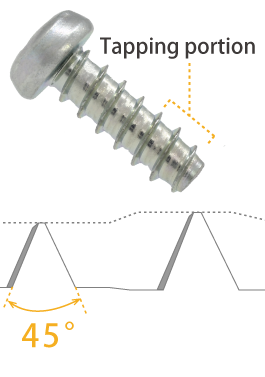

ITP-1
< Shape >
・Large thread pitch
・Sharp thread angle
・Large outer diameter of the female thread forming area
< Feature >
Prevents resin cracking
< Purposes >
Hard plastic
Boss structures

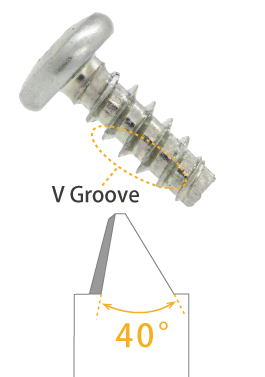

ITP-2
< Shape >
・Sharp thread angle with asymmetrical profile
・V-groove on the thread crest
< Feature >
High thread shear strength
Improved anti-loosening performance
< Purposes >
Locations with loosening concerns

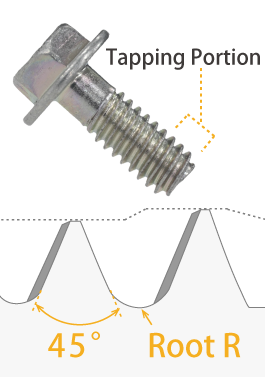

ITP-3
< Shape >
・Large root radius
・Double-start thread
・Large outer diameter of the female thread forming area
< Feature>
Improved fatigue strength
< Purposes >
Areas subjected to external forces

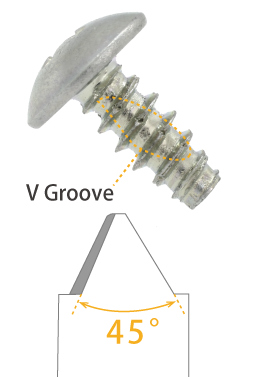

ITP-JS
< Shape >
・V-groove on the thread crest
< Feature>
Improved anti-loosening performance
< Purposes >
Locations with loosening concerns

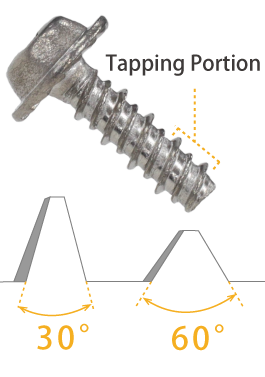

ITP-HL
< Shape >
・Double-start thread with high and low threads
・Non-circular thread axis shape
< Feature>
Reduced tightening time
Improved anti-loosening performance
< Purposes >
Soft plastic
