AP-S Bolt
Bolt that corrects inserting angle
AP-S Bolt
Bolt that corrects inserting angle
- Feature
- The shortened functional tip creates an adjustment (guiding) effect during insertion, helping correct the insertion angle and prevent cross-threading.
- What is AP-S？
- Adjustment Point Short type
- Industry
- Automotive, Home appliances, Office equipment, etc.
- Specified Application
- Locations where fastening posture is difficult and cross-threading may occur.
- Benefits to Users
- Effect, Improved fastening reliability, Prevention of thread galling, Enables more compact product design
- Size
- M4 to M12
Conventional Products
<Issues >
●When the bolt is inserted at an angle, the bolt may spin without engagement or engage at an angle, causing thread galling.
●Once galling occurs, repair work is required, reducing productivity.
Standard Dogpoint
- Reliability
- 100
- Cost Index
- 100
AP-S Bolt
<Feature>
●A specially designed tip allows the bolt to complete engagement while adjusting the insertion angle, without thread galling even when inserted at an angle.

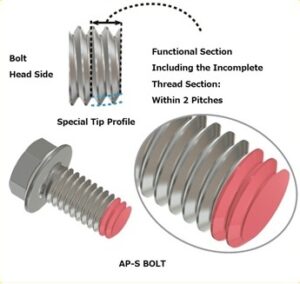

●The functional section, including the incomplete thread section, is limited to two pitches from the tip, allowing the same dimensional design as a standard as-rolled end.
AP-S Bolt
- Reliability
- 110 (Reliability score based on current parts as 100%)
- Cost Index
- 60 (Total cost when reworking cost are added)
